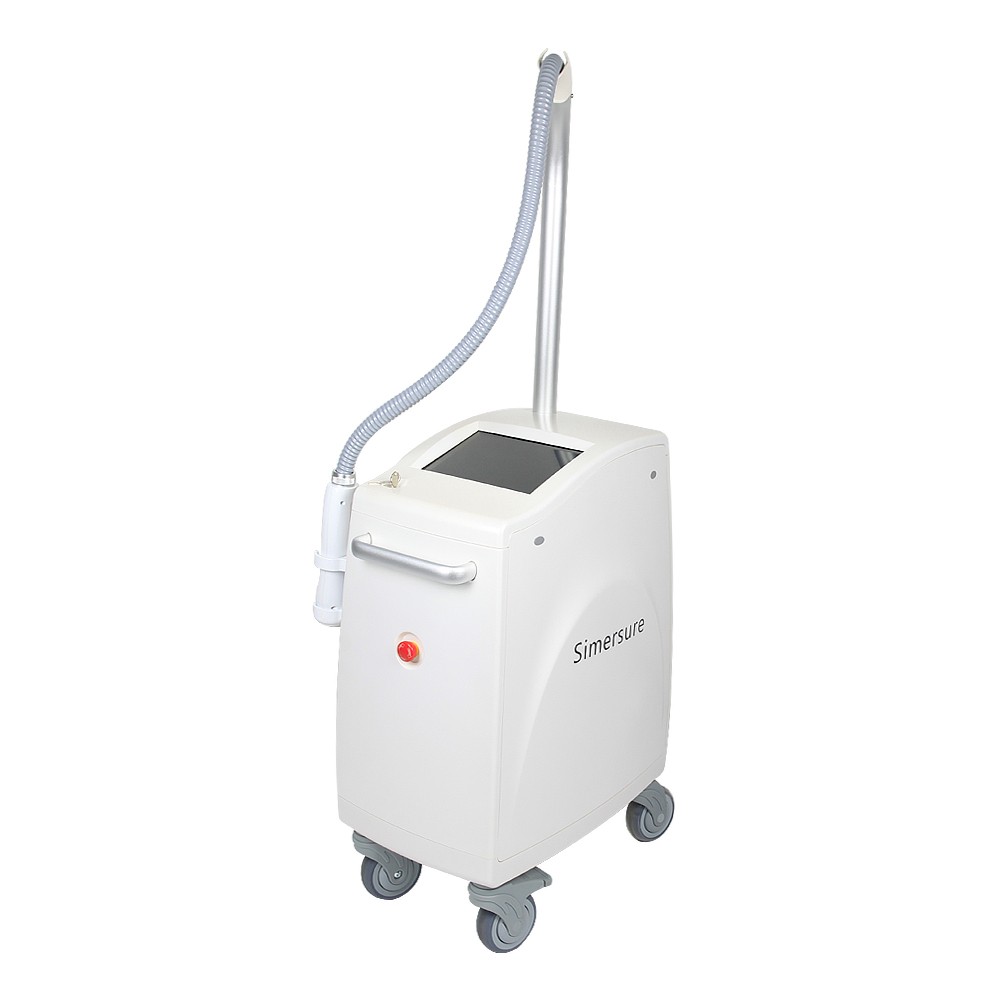

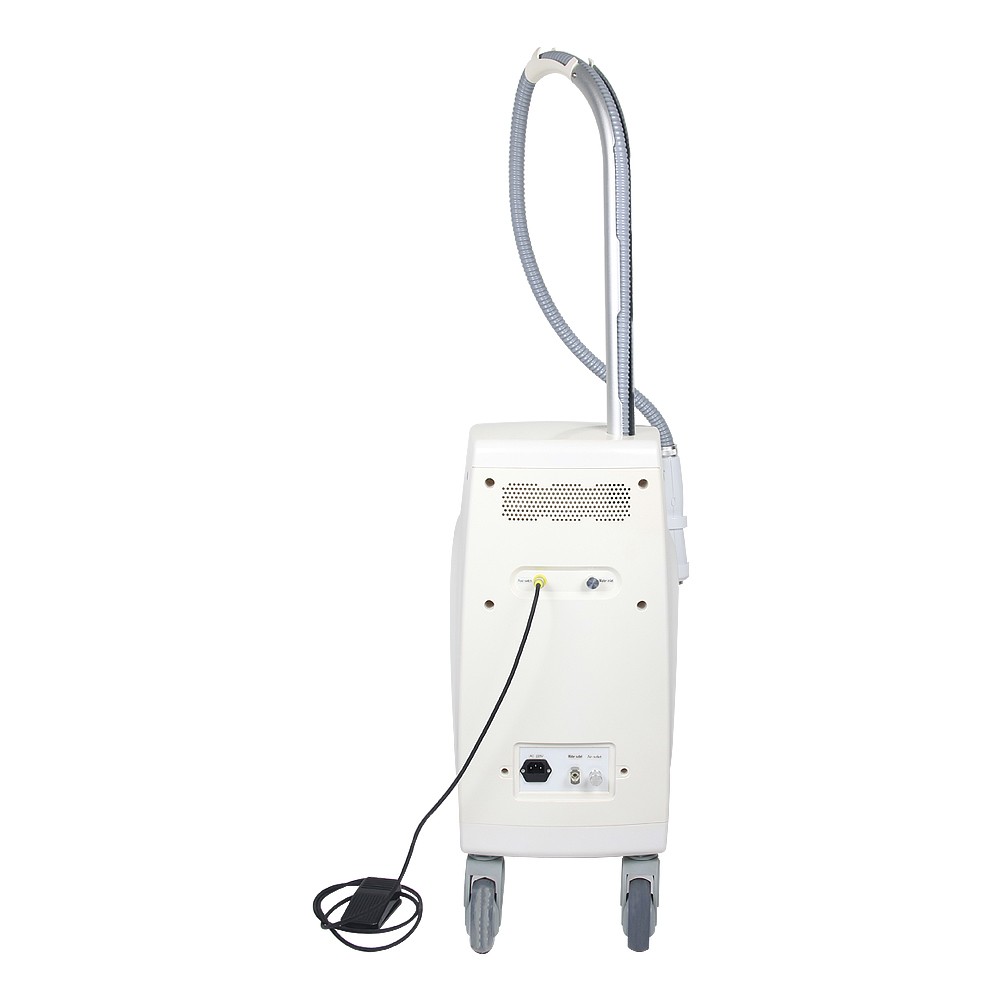

Ng Yag Laser Tattoo Removal Machine

Using the light blasting effect, the high-intensity laser penetrate the epidermis and can reach the pigment clusters in the dermis layer. Because the energy has a short time of action and the energy is extremely high, the pigment clusters will quickly expand and explode after absorbing the high energy in an instant. After the particles are swallowed by macrophages, excreted, and the pigment gradually fades and disappears.
The picosecond laser with ultra-short pulse width can effectively produce photo-mechanical effects and break the pigment particles into small fragments Compared with nano-scale Q-switched laser, picosecond laser only needs lower energy to achieve the effect.It takes less number of treatment courses to achieve better treatment effect Stubborn green and blue tattoos can also be effectively removed.In the mechanism of pigment particle destruction, there are mainly photothermal and photomechanical effects. The shorter the pulse width, the weaker the effect of converting light into heat. Instead, the photomechanical effect is used, so picoseconds can effectively crush the pigment particles, Resulting in better pigment removal.


EMAIL

Application

Remove chloasma, freckles, age spots, brown mole spots, acne marks and other endogenous pigments, wash eyebrows, tattoos, moles, birthmarks, remove Ota moles, etc.


532nm: effective for tattoos(red and brown), reddish pigments and age spots.

1064nm: effective in treating endogenous pigmented skin lesions. Wash eyebrows, tattoos(dark and blue) and dark pigments, remove moles.

1320nm: shrink pores, whiten skin and lighten spots. Has obvious effects on the treatment of pigmented skin lesions such as tattoos, eyebrow tattoos, eyeliner, lip liner on exogenous pigmented skin, and traumatic tattoos.



Specifications

Feature

Remove freckle;Tattoo removal;

Skin rejuvenation;Wash eyebrows;

Mole washing;Whitenning rejuvenation

Laser power

500W

Rated power

1200W

Output mode

pulse output

Pulse width range

500 picoseconds

Screen

10.4 inch touch

Laser wavelength

532nm, 1064nm,1320nm

Spot size

1-5mm (adjustable)

Energy

10-1000mJ(decimal system

Frequency

1-10Hz

Machine cooling system

Water cooling + air cooling(24 hours works)

Voltage

220v
