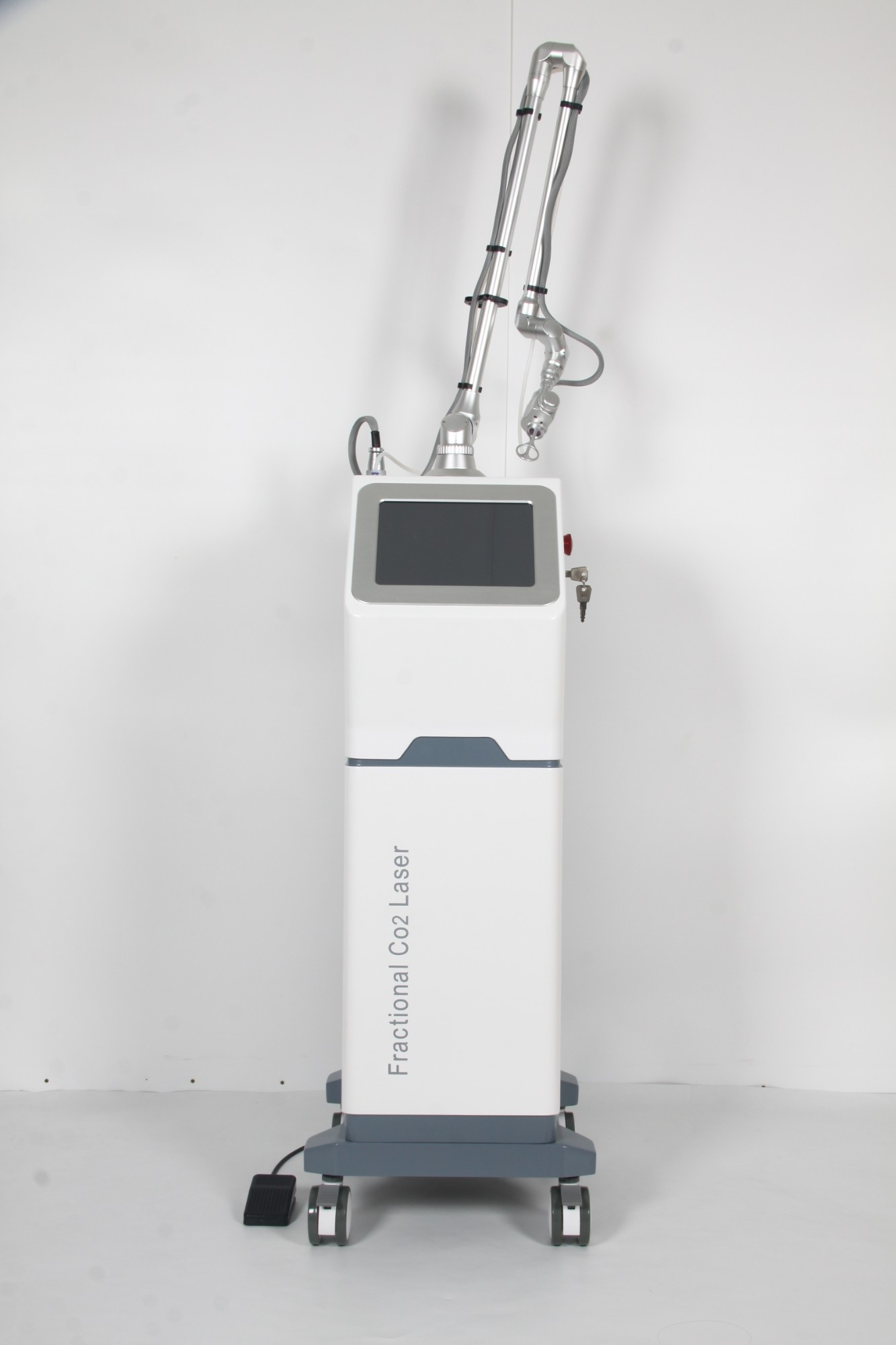

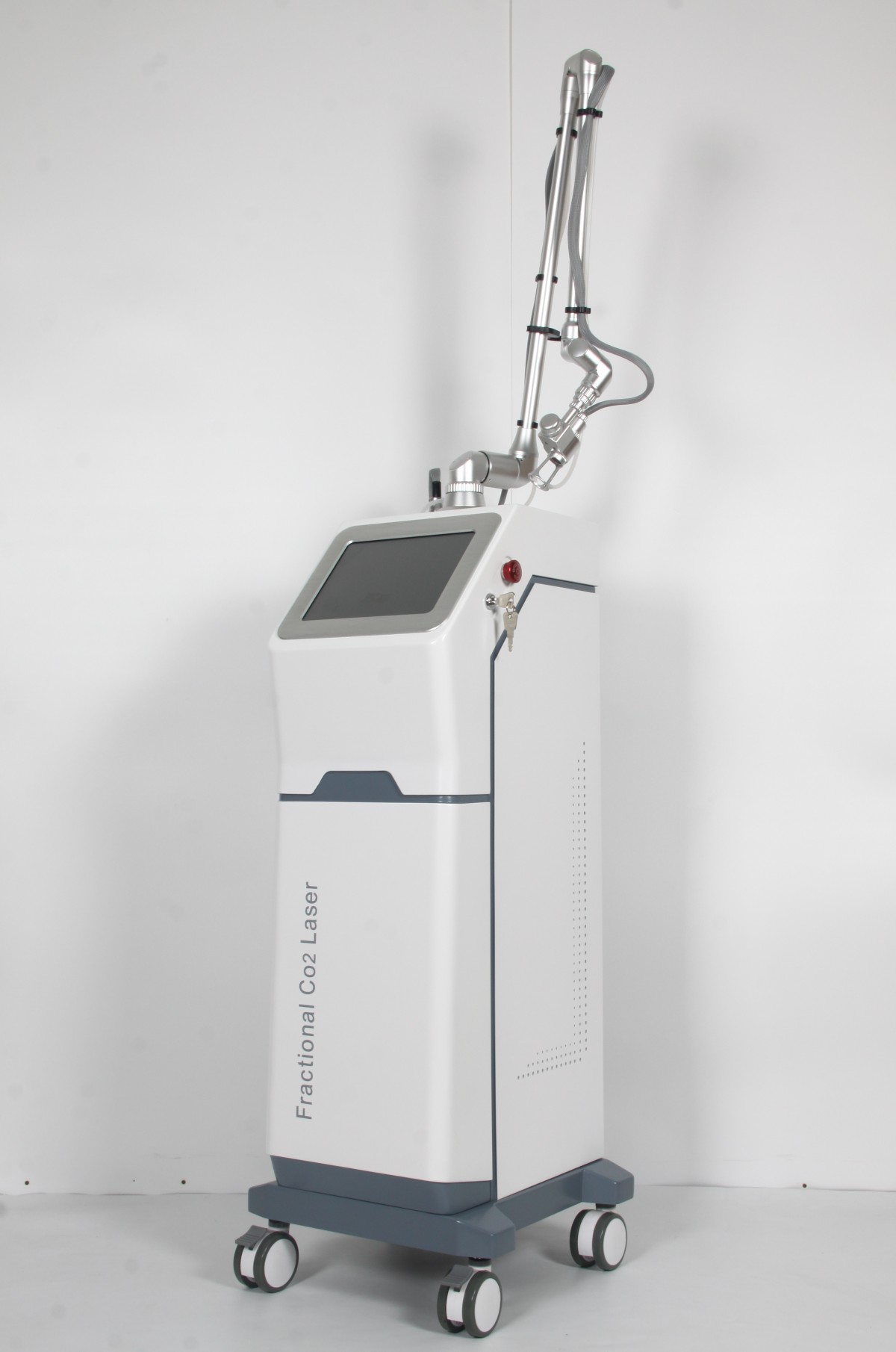

The wavelength of CO2 laser is 10.6μm, which can be fully absorbed by human biology tissue (all the skin are available). The sealed-off fractional CO2 laser, whose output laser-light will be transferred by articulated arm, which has better sense of direction and higher energy density.
The CO2 laser operates in the invisible infrared waveband, and an aiming beam is required to see where the treatment beam will impact tissue more recently from a visible red diode laser. When the laser beam go through the focus lens, the produced heat will gasify the target tissue.
With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.
Application
(1) Remove acne and acne marks;
(2) Eliminate dry pattern, fishtail, etc around the eyes;
(3) anti-aging: skin firming, wrinkle removal, improve the skin condition;
(4) Treatment of pigmentary lesions such as freckles and ostrum miracles;
(5) Scar: treatment of depressed, old dispersion, convex vascular / fibrous scar;
(6) Stretch marks.
The wavelength of CO2 laser is 10.6um,which can be fully absorbed by humanbiology tissue (all the skin are available)The sealed-off fractional CO2 laser,whose output laser-light will be transferredby articulated arm, which has bettersense of direction and higher energy
density.

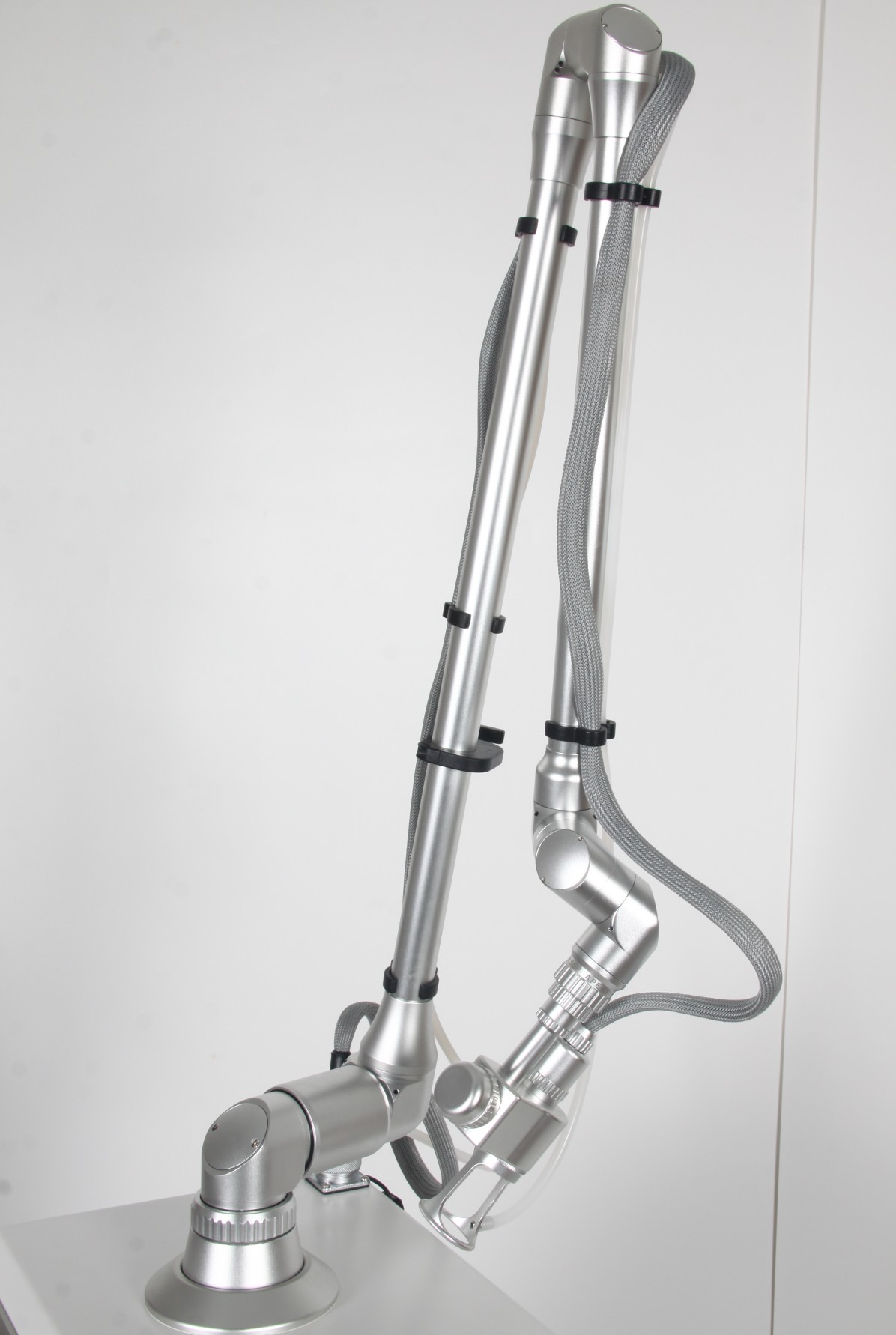

Fractional mode and normal mode to choose from>Laser wavelength10.6um, Red diode laser(650nm, 2mW)>Transmission system :Spring-balanced 7 joint arms.
Constant temperature system:Intelligent Al chip, precise temperature control Ensure a constant temperature of 4°C.
Output speed:Frequency 1-10HZ controllable pulse output.
Safety performance:When the ratio between the energy valueand the frequency value does not complywith the safe output energy density, thesystem will automatically adjust the safe state.
Type | Sealed-off CO2 |
Working mode | single pulse, continuous pulse.repeated pulse, ultra pulse |
Output power | 0-60W(adjustable) |
Input power | 450VA |
Laserwavelength | 10.6 μm |
Divergence angle | 4 mrad |
Focused spot diameter | ≤0.4mm |
Tool bit focus | F=100mm(optional) |
Pulse width | 0.02-0.99s |
Aiming beam | Red diode laser(650nm,2mW) |
Transmission system | Spring-balanced 7 joint arms |
Cooling system | Inside-circle coolant |
Display screen | LCD |
Temperature | 5-40°C |
Humidity | <80% |
Air pressure | 86Kpa-106 Kpa |
Input power | AC220V士10%,50Hz |
Preheating-time | >5min |
Electromagnet | No electromagnet interrupt |
Working environment | No obvious shaking or airflow |
Size | 183 (with arms)x45x40cm |
